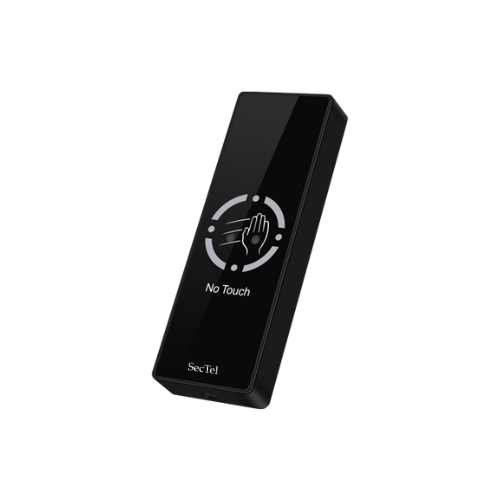

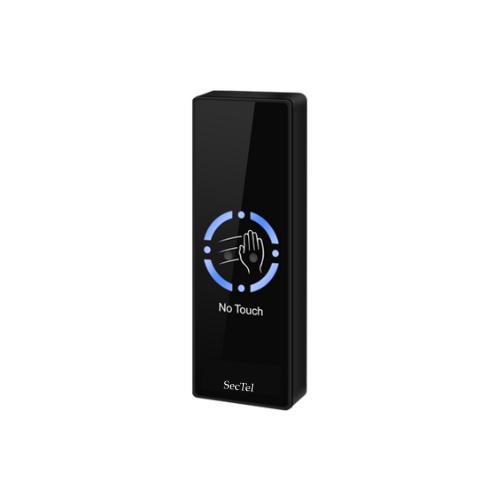

ST25-AB501

No Touch Exit Button

> Sensor distance: 3~10cm (Adjustable)
> Output contact: NO/NC/COM
> Blue LED indicator: standby
> Green LED indicator: active
> Two types:
    Normal: Not waterproof
    Delay: Waterproof (IP66) 5s, 10s timer delay or Toggle Mode

Opetaring Voltage: 10~24V DC

Idle Current: < 15mA

Working current: <25mA

Current rating: 2A

Sensor Distance: 3~10cm (adjustable)

Output: NC or NO

Infrared Wavelength: 940nm

Timer Delay (Waterproof version only): 5s / 10s/ Toggle Mode

Environment: IP66 (Waterproof version)

Operating temperature: -20°C ~+60°C

Operating Humidity: 0% ~86%

Physical: ABS

Dimension: L115mm*W40mm*H15mm

Shipping weight: 115g
